- Not for Facelift

Attention!
- Only for vehicles with original factory cargo space. Does not fit modified vehicles or passenger versions.
- The floor liners are only suitable for car models with original factory partition wall, unless indicated otherwise.
- Always check that your vehicle has the specified vehicle length (in mm). The vehicle length code (L1, L2, etc.) is not always reliable as it may vary per country.
- Due to its dimensions, this product is often delivered with a truck. Therefore, only enter a delivery address that can be reached with a truck, during office hours. An unsuitable delivery address may lead to extra transportation costs that cannot be refunded. If in doubt, contact us before ordering.
- The floor liners are specially made to order and cannot be returned.

This high-quality plywood floor liner is tailor-made for your Mercedes-Benz Vito (W639). The flooring creates a flat and solid surface for the cargo and protects the original metal floor of your commercial van against damage. The floor liner is made of high-quality weather and boil proof (WBP) birch plywood with a non-slip top layer, which reduces the risk of sliding cargo and slipping persons. The floor liner is available in different types of plywood:

• KoskiCrown brown - Coating: phenolic resin 220 g/m². Available thicknesses: 9 and 12 mm
• KoskiCrown grey - Coating: phenolic resin 440 g/m², UV resistant. Available thicknesses: 9 and 12 mm
• KoskiDeck granite - Coating: phenolic resin 440 g/m², UV resistant. Available thicknesses: 9 and 12 mm
• KoskiDuo grey - Coating: polypropylene coating, very robust, wear-resistant and food-safe, resistant to oil and chemicals, particularly suitable for demanding areas of application. Available thickness: 12 mm

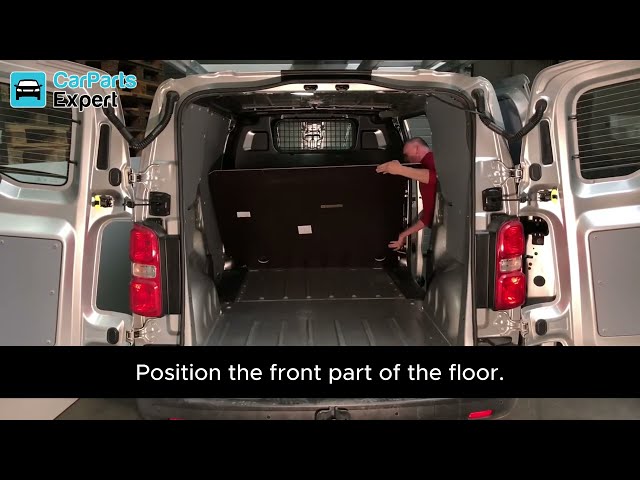

To facilitate transport and installation, most floors are delivered in two or more parts. The parts are simply connected to each other using the supplied coupling screws in pre-drilled holes. The coupling screws are only screwed into the floor liner parts and not into the steel floor of the car. As standard, each floor liner is supplied with flush-integrated aluminum door sills, provided the entry is not curved. Also standard is mounting with mounting shells, which correspond to the original lashing eyes in the floor of the car. The original lashing eyes are mounted back in the mounting shells, which can be oval or round, depending on the car model. In cars where the lashing eyes are not mounted in the floor, but against the side wall, the floor liner is usually supplied with special L mounting brackets, which are screwed into the side wall. For floor liners without the possibility of screw mounting, we recommend fixation with MS-Polymer glue.

Product features:

• Tailor-made for the cargo floor of your van
• Protects the original metal floor against damage
• Available in various types of weather and boil proof (WBP) birch plywood
• Wear-resistant anti-slip top layer
• Flush-integrated aluminum door sills at the sliding doors and the rear. Exception: curved entry is delivered chamfered, without door sills
• Most floor liners are supplied in two or more parts, which are connected using the supplied coupling screws in pre-drilled holes
• Easy mounting using the supplied mounting shells, corresponding to the original lashing eyes in the floor of the car. In cars where the lashing eyes are not mounted in the floor, but against the side wall, the floor liner is usually supplied with special L mounting brackets, which are screwed into the side wall. For floor liners without the possibility of screw mounting, we recommend fixation with MS-Polymer glue (not included).
