- For 3 normal bikes, 2 fat bikes or 2 e-bikes

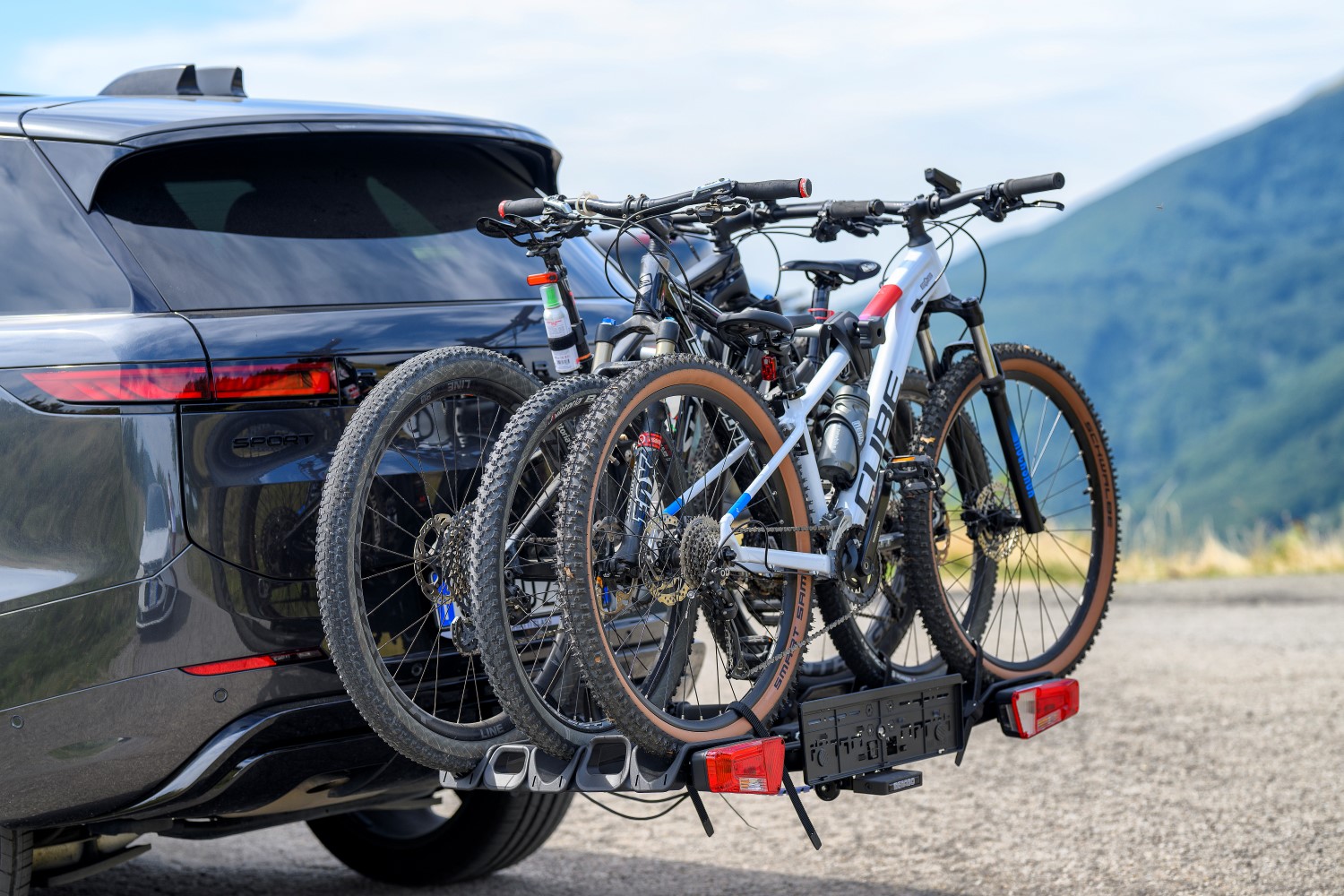

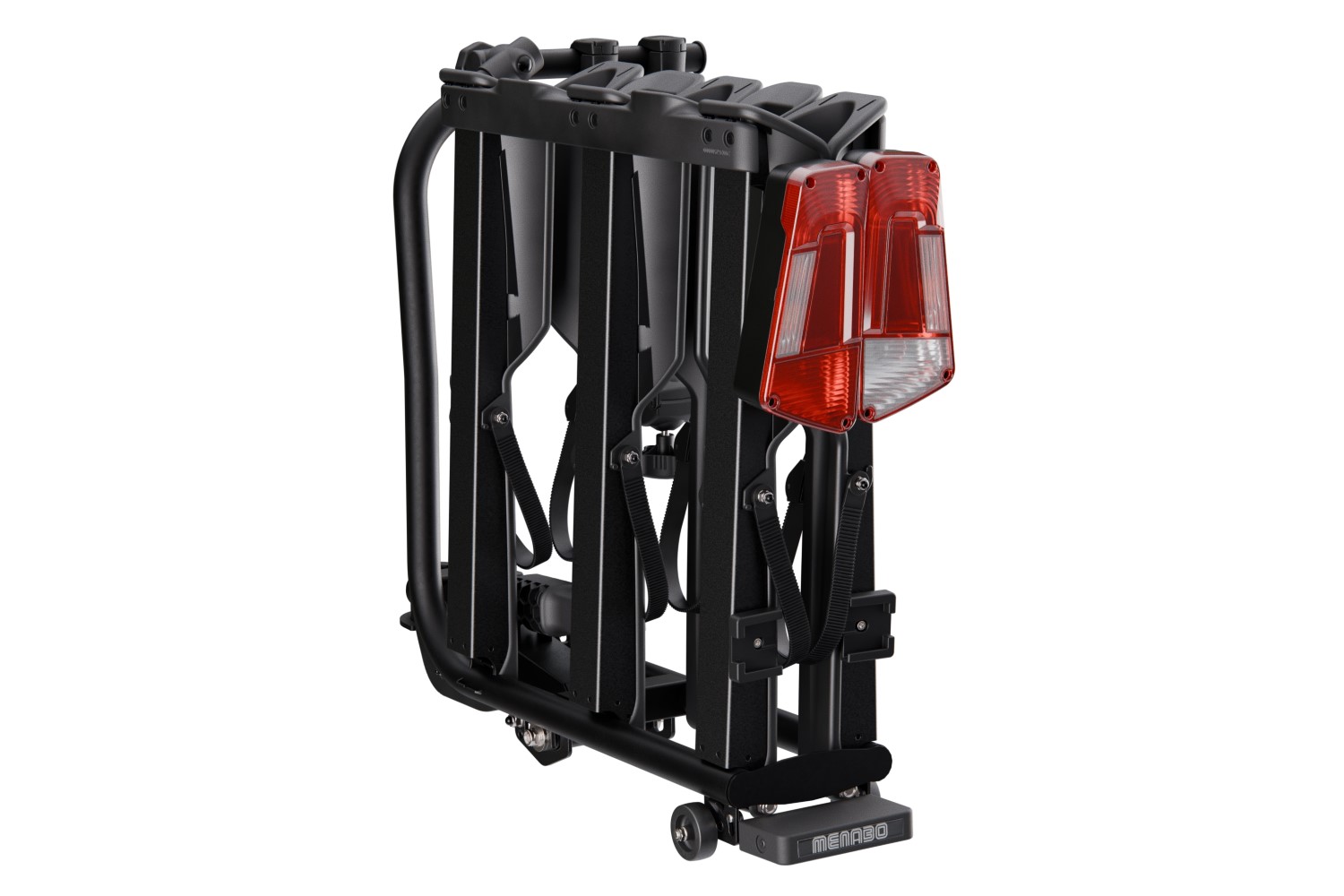

The Menabo Orbit 3 bike carrier is suitable for 3 bicycles. The sturdy steel frame has a maximum load capacity of 70 kg, making it perfectly suitable for e-bikes. The large aluminum wheel trays can take extra wide tyre sizes, like those of fat bikes. The quick lock system with anti-theft lock ensures easy and secure installation on the towbar of your car. The bike carrier has a pedal tilting function, to allow easy access to the boot space. The Orbit 3 is supplied as standard with frame clamps without anti-theft lock, but rotary knobs with a key lock can be ordered as an accessory. For easier loading of the bikes it is possible to order the optional Menabo drive-up ramp.

Product features:

• Mounting on towbar
• Suitable for 3 bikes, also for e-bikes
• Maximum total weight of the bikes: 70 kg *)
• Weight bike carrier: 18 kg
• With 13-pin plug (adapter for 7-pin socket can be ordered separately)
• Pedal tilting system for easy access to the boot space
• Carrier can be secured on the towbar by means of a key lock
• Frame clamps without key lock (rotary knobs with key lock can be ordered separately)
• Frame clamps suitable for frame tube diameters from 30 mm round to 50x75 mm
• Wheel tray distance: 200 mm and 220 mm
• Wheel trays suitable for tyres of up to 80 mm (3.1 inches) wide
• Suitable for bikes with wheelbase of up to 1310 mm
• License plate holder suits all European sizes
• Dimensions: L 82 x W 130,1 x H 70 cm
• 2 years Menabo warranty

*) May be limited by the maximum admissible tow ball pressure on your towbar. This is shown on the towbar type plate and the VIN plate inside the car.
